20T Low Headroom Electric European Type Wire Rope Hoist With Germany Schneider Contactor
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor

Product Description

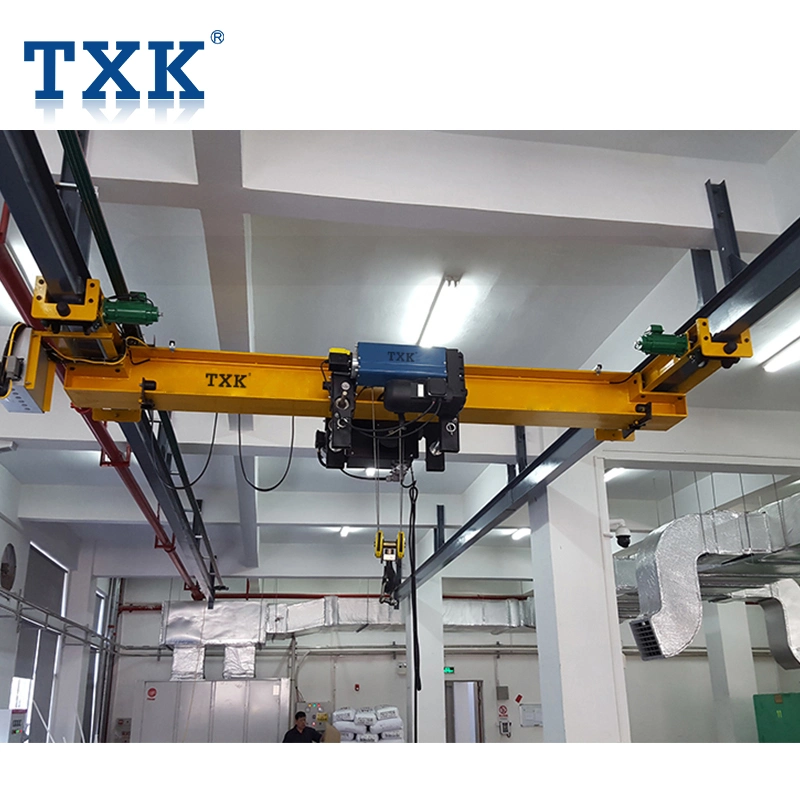

European model wire rope hoist is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.
It can also be used to the hoist double beam, gourd gantry crane or cantilever crane
It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

Trolley drive unit
Trinity of high-performance motor,reduction gearbox and brake.Compact structure,excellent performance.Low energy consumption,
low noise and eco-friendly design.

Variable frequency control,smooth running,low impact and meeting requirements of a variety of speed.
Asbestos-free brake disc and its normal service life can be up to one miliion times. No-wear design ,maintenance-free,long service life.

Novostar safety monitors
Intelligent monitoring system , safe and practical,friendly human-machine interface and easy operation.
Can monitoring record the running time of the hosit and the number of verload and other information.
Regular maintenance reminders and friction plate wear alarm.
Achieve optional configuration of double hoist synchronous lifting operation and others.

Rope guide
Light weigt,good wear resistance, to reduce the wear of wire rope effectiwely.
Prevent wire rope form skipping and loosing to off-groove, and safety first.

Wire rope high-performance
The imported wire rope of high-performance with tensile strength up to 2160MPa.
The surface with galvanized processing for corrosion prevention effectively .
With good flexibility to ensure wear resistance of the wire rope and prolong its service life.

Drum
Use the Q345-type seamless steel tube as raw material and process it by numbers of working procedure .
Advanced processing methods to ensure concentricity of the drum.
The depth of rope groove is in compliance with the FEM standard.
High-strength pressing plates and bolts are fastened on the end of the wire rope to ensure the safety lifting.

Lifting height limiter
Freely adjustable screw lifting height limiter with high precision, wide adjustment rang, safe and reliable.
Multiple-contact configurations can effectively achieve the function of transition with low and high speed and the stop during the rise and fall.

Lifting hook group
DIN standard of lifting hook with safety clasp and wire rope sheath Ergonomic design.
Forged by the high-strength material of T grade. Accompanied with nondestructive test certification of lifting hook randomly.
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor
Technical details:

Capacity(t)Working class(FEM/DIN)Lifting Height(m)Lifting speed(m/min)Travelling speed(m/min)
1.6M6/3M61.6/102-20
9
12
2.5M6/3M60.8/5.02-20
9
12
3.2M5/2M60.8/5.02-20
9
12
6.3M5/2M60.8/5.02-20
9
12
8M6/3M60.8/5.02-20
9
12
10M5/2M60.8/5.02-20
9
12
10M6/3M60.66/42-20
9
12
80M5/2M616/22-20
9
12

Features:
1. Beautiful appearance: with epoxy paint,much better for corrosion resistance .

2. Hoist with housing: which protect the coiling block,rope guide,and wire rope,not be effected by the dust in air,
make hoist working much more time .

3. Hoist with heat protection and Overload protector

4. Ectromagnetic brake:no need maintenance in service life,which reduce much cost for maintenance .

5. Motor protection grade:IP54;Brake system protection grade:IP65;Insulation grade:F

6.AC contactor: Schneider .
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider ContactorCompany Profile:

"TXK" was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience.
We provide quality, safe and stabe products to meet the highest industrial standards. We are ISO9001:2008 certified company.
 our products are GS,CE certified, serving all spheres of industry in the world.

Our bran "TXK" is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products.
With our Professional R&D team, we are able to provide customization services with the most professional quality and
never stop meeting the highest standard of safety.

"TXK" will never stop being as an innoative manufacturer. We will continue to develop and extend our products range
with high quality, safety standard and long life usage.
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor

20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor

7 Reasons To Trust TXK Hoist:

1.LONGEST HISTORY ANDLONGFEVITY -
TXK is one of the oldest established hoist hoist manufacturer in China with almost 20 years.

3.RICHEST EXPERIENCE IN WORLD BUSINESS -
TXK has more than 10 years experience and s on international trade business.

4.WEDEST PRODUCTS AND SERVICE PROVIDING
TXK can provide widest products items include electric & manual lifting equipment.

5.FASTEST LEAD TIMES
TXK factory is equipped with most efficient producing line which handled by skillful workers.

6.FULLEST CERIFICATIONS -
TXK factory and products are well certified by CE, GS, TUV, ISO, SGS, ext.

7.HIGHRST REPUTATION -
TXK
 products are well sold in more than 50 countries.
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor

Packages and shipping:

1. Packing : Plywood Cases (Fumigation-free packing)

2. Shipping way: By sea or By Air or Express
20t Low Headroom Electric European Type Wire Rope Hoist with Germany Schneider Contactor
FAQ

1. Are you manufacturer or trade Company?
 We are a factory founded in 2006 with trade team for international service.

2. How about sample & MOQ policy?
 Welcome sample order. MOQ can be 1 set.

3. what is your lead time for your goods?
Normally 10days after confirmed order. 7 days could be available for some items in sufficient stock and standard requirements,
and 20 days during new year and hot season ( Jan to March).

4.What should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
A- Capacity ?
B- Lifting height?
C- Power supply:3P,380V,50Hz ?
F- How many sets?
G- FOB ,CFR or CIF price , which one ?
